The Role of Single-Mode vs. Multimode Fiber in Modern Network Design
Learn about the role of single-mode vs multimode fiber in modern network design. Discover how each type of fiber-optic cable fits into large-scale and local networks, with considerations for distance, speed, cost, and scalability.

Introduction:
As businesses, organizations, and service providers continue to adopt high-speed internet and data services, the need for efficient and reliable network infrastructure becomes increasingly important. Fiber-optic cables, specifically single-mode fiber vs multimode fiber, are at the core of these networks. Understanding how to effectively integrate these two types of fiber into modern network designs is essential for optimizing performance and cost-efficiency. In this post, we explore how SMF and MMF contribute to building robust, scalable, and high-performance networks.

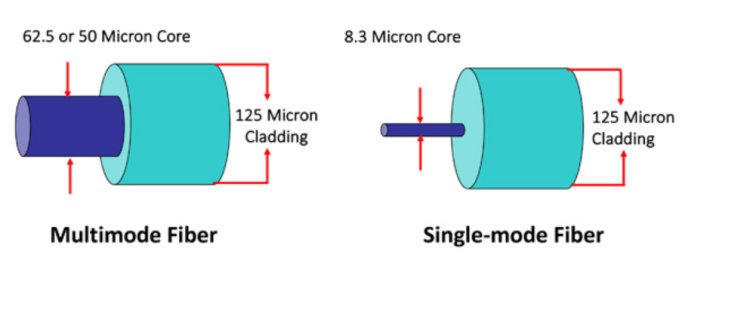

Understanding the Basics of Single-Mode and Multimode Fiber
-
Single-Mode Fiber:
As the name suggests, single-mode fiber allows light to travel in one mode, or path, across its small core (typically 8 to 10 microns). This enables it to transmit data over longer distances with minimal loss and distortion. SMF is typically used for long-haul communication systems, where clarity and distance are a priority. -
Multimode Fiber:
Multimode fiber, in contrast, has a larger core (50 to 100 microns) and supports multiple light paths, or modes, to transmit data. While this enables faster data transmission over shorter distances, it also causes signal dispersion that limits the distance over which the fiber can reliably transmit data. MMF is often employed in local area networks (LANs) and within buildings or campuses.
How Single-Mode and Multimode Fiber Fit into Network Design
-
High-Speed Backbone Networks (Single-Mode Fiber)
When designing the backbone of a network, especially in large-scale systems like those used by telecommunications companies or internet service providers (ISPs), single-mode fiber is the clear choice. SMF supports high bandwidths and low latency, which are crucial for handling large volumes of data over long distances without significant signal degradation.Single-mode fiber is ideal for long-distance connections between cities, regions, or countries. It connects data centers, internet exchanges, and network hubs, forming the infrastructure necessary for cloud services, content delivery networks (CDNs), and internet backbone systems.
-
Internal Building or Campus Networks (Multimode Fiber)
Multimode fiber is often used in the internal networking of buildings, campuses, and smaller enterprise environments where high bandwidth over short distances is required. This is ideal for creating fast communication between servers, workstations, and various equipment within an organization. Since multimode fiber supports high speeds, it is a cost-effective solution for these smaller-scale networks where long-distance transmission isn’t necessary.MMF is commonly found in office networks, universities, and even industrial complexes that need to interconnect multiple devices within a limited space. Its lower cost, compared to single-mode fiber, allows for widespread use without breaking the budget.
-
Scalability Considerations
One of the most important factors in modern network design is scalability—how easily the network can grow to meet future demands. Single-mode fiber offers superior scalability, supporting higher speeds and longer distances as the network grows. SMF’s performance remains consistent even as network demands increase, making it the better long-term investment for businesses and service providers looking to expand their infrastructure.On the other hand, while multimode fiber is sufficient for short to medium-range applications, it is less scalable due to its signal degradation over longer distances. For businesses expecting significant growth or expansion into new geographic areas, multimode fiber may eventually need to be replaced with single-mode fiber to support higher bandwidths and longer distances.
-
Future-Proofing with Single-Mode Fiber
As industries adopt more data-intensive technologies, such as the Internet of Things (IoT), artificial intelligence (AI), and 5G connectivity, the demand for high-speed, low-latency networks will continue to rise. Single-mode fiber is the technology of choice for future-proofing these networks due to its ability to support faster speeds and longer distances without compromising on performance.This makes SMF ideal for modern applications like cloud computing, autonomous vehicles, and smart cities, where massive amounts of data need to be transferred with minimal delay and maximum reliability.
-
Cost Considerations and Deployment Scenarios
One of the key considerations in network design is the balance between performance and cost. Multimode fiber tends to be less expensive to deploy, especially over shorter distances, due to the lower cost of components such as light-emitting diodes (LEDs) and connectors.For smaller businesses, educational institutions, and organizations with limited budgets or shorter-distance networking needs, multimode fiber offers an affordable solution without sacrificing speed for local applications. However, when building larger, high-demand, or geographically expansive networks, single-mode fiber is often the preferred choice for its ability to handle long-distance connections and heavy traffic without performance issues.
Choosing the Right Fiber for Your Network
When deciding between single-mode and multimode fiber, you should evaluate several factors:
- Distance Requirements: SMF is ideal for long-distance connections, while MMF is suited for shorter, local connections.
- Bandwidth and Speed: If you need extremely high bandwidth and speed, especially for cloud-based applications or data centers, single-mode fiber should be your choice.
- Budget: If you’re building a network for short-range communication within a single building or campus, multimode fiber offers a more budget-friendly solution.
- Future Growth: Consider the scalability needs of your network. Single-mode fiber is more adaptable to growing demands, while multimode fiber may require upgrades or replacement as network traffic increases.
Conclusion:
Both single-mode and multimode fiber play essential roles in the modern network design. By carefully considering factors such as distance, bandwidth needs, cost, and future scalability, you can choose the right fiber-optic cable to meet your specific requirements. Whether you’re designing a high-speed backbone network for telecommunications or a local network for a business or campus, understanding the role of SMF and MMF will ensure that your infrastructure is both efficient and future-proof.
